All German Motorsports 20" Travel Scissor Jack With Swivel Head 5-1/8" Collapsed To 26-1/2" Extended


Estimate Shipping
Price: $99.99
4 In Stock
Sold As:
1 Scissor Jack
Part Number: AGMEJA2001
MFG Number:
EJA-2001

Description

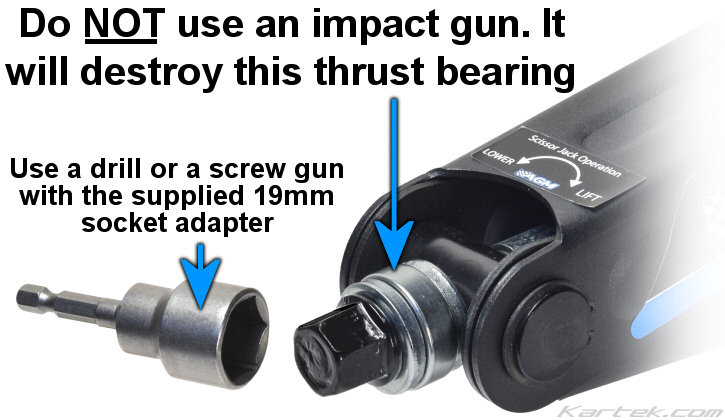

The jack includes a drill or screw gun 19mm adapter socket and a 19mm reversible hand ratchet. This jack was not designed for use with an impact wrench. DO NOT USE AN IMPACT GUN ON THIS JACK! Behind the 19mm nut that you use to raise or lower the jack is a thrust bearing. Impact guns will destroy that bearing. See photo below.

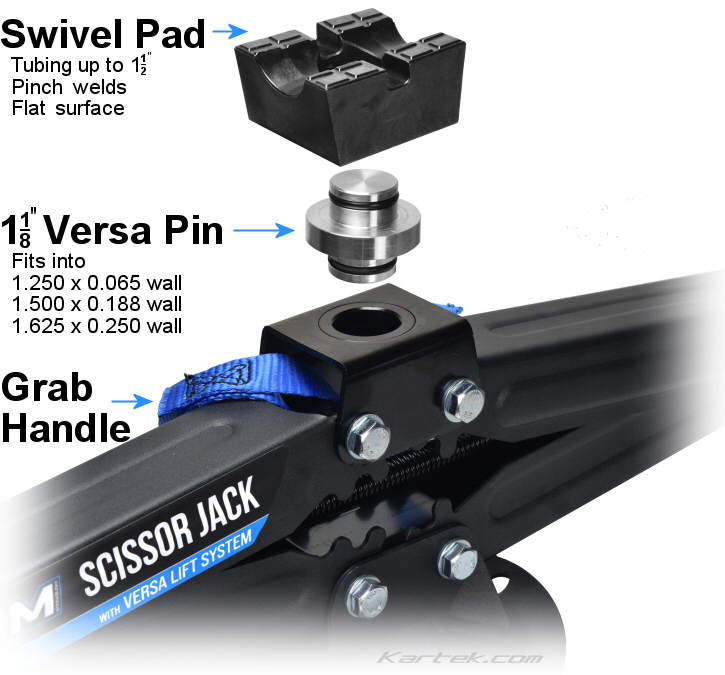

The urethane pad on top swivels and will rest underneath a tube up to 1-1/2" in diameter, pinch weld or the flat surface of your vehicle. The pad can be removed. Underneath it is a 1-1/8" double sided Versa Pin. Some people weld tubing to the bottom of the chassis as "cups" for the jack to index into.
AGM's screw jack mounting kit (sold separately) will fit this scissor jack. Both jacks share the same 7-1/4" size bottom foot. You won't use the cup that is included in that kit but you do need to brace the top of this jack when mounting it in your vehicle. If you rely only on the bottom foot holder, the vibration from the vehicle will cause the jack to expand.

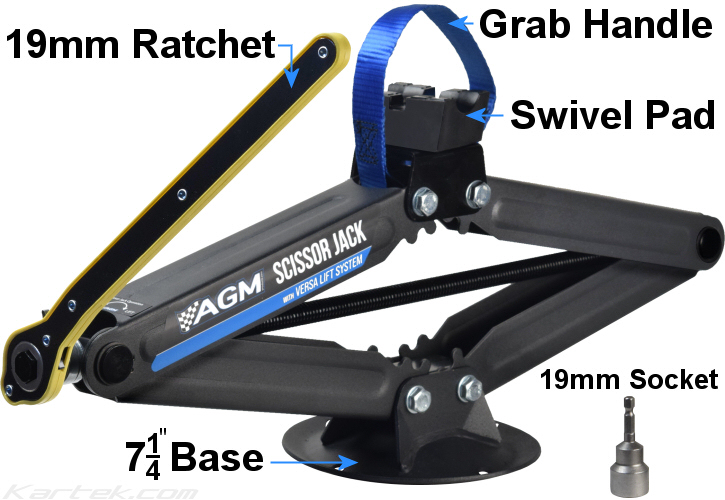

INCLUDES:
Scissor jack
19mm Reversible hand ratchet
19mm Drill or screw gun adapter socket
Nylon carrying handle
Removable urethane swivel head
Removable 1-1/8" Versa Pin

SPECS:
1 Ton 2000 lbs capacity
20 inches of travel
Weighs 13-1/2 lbs
27" Wide when fully collapsed
5-1/8" Tall without the urethane head when collapsed
6-1/2" Tall with the urethane head when collapsed
25-1/8" Tall without the urethane head when extended
26-1/2" Tall with the urethane head when extended
7-1/4" diameter bottom foot
Can be used with AGM's screw jack mounting kit
