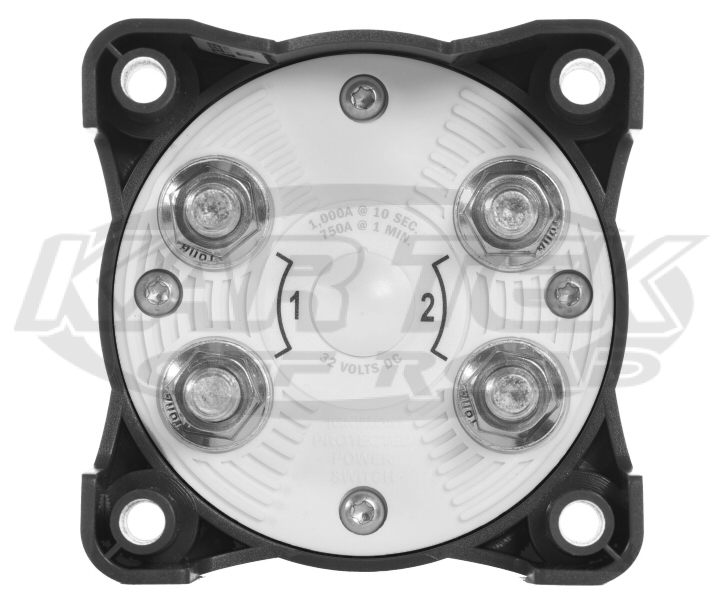

Blue Sea Systems Dual Circuit Plus E-Series Black Dual Battery Cut Off Switch Without AFD
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov
Description
-
Features:
- Simultaneously switches two isolated battery banks or combines battery banks to all loads
- Make-before-break contact design allows switching without power interruption
- Ignition protected—safe for installation on gasoline powered trucks and buggies
- Case design allows surface or rear panel mounting
-
Specifications:
- Switch Type: Dual Circuit Plus
- Color: Black
- Switch Positions: 3
- Battery Combine: Yes
- Alternator Field Disconnect: No
- Maximum Voltage: 32V DC
- Terminal Stud Torque: 140 in-lb (15.82 Nm)
- Continuous Rating: 350A
- Intermittent Rating: 525A (5 min)
- Cranking Rating 10 sec: 1000A
- Cranking Rating 1 min: 750A
- Battery Inputs: 2
- Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm*)
- Mounting Holes: Accept 1/4" (M6) Screw
- Terminal Stud Size: 3/8" - 16 (M10)
- Weight: 1.30lb (0.59 kg)
