Blue Sea Systems HD Series Gray Dual Battery Cut Off Switch With Alternator Field Disconnect
Estimate Shipping
Price: $85.99
2 In Stock
Sold As:
1 Battery Switch
Part Number: BSS3003
MFG Number:
3003
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov
Description
-
Features:
- Switches isolated battery banks to all loads or combines battery banks to all loads

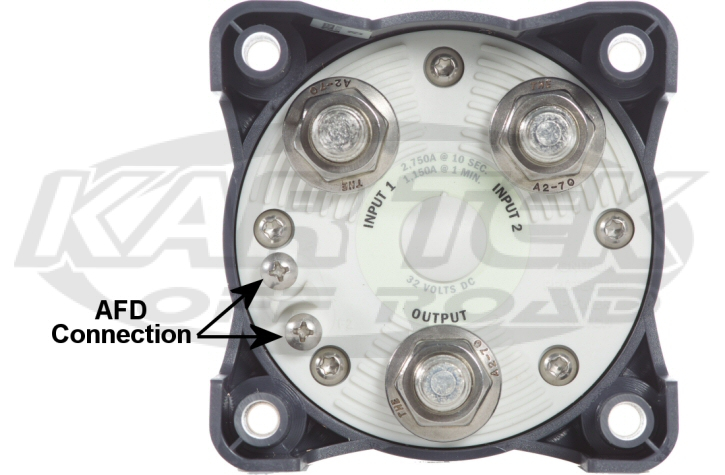

- Includes AFD (Alternator Field Disconnect)
- Make-before-break contact design allows switching between battery banks without power interruption
- Ignition protected—safe for installation on gasoline powered trucks and buggies
- Case design allows surface or rear panel mounting
-
Specifications:
- Switch Type: Selector 4 Position
- Color: Gray
- Switch Positions: 4
- Battery Combine: Yes
- Alternator Field Disconnect: Yes
- Maximum Voltage: 32V DC
- Terminal Stud Torque: 220 in-lb (24.86 Nm)
- Continuous Rating: 500A
- Intermittent Rating: 700A (5 min)
- Cranking Rating 10 sec: 2750A
- Cranking Rating 1 min: 1150A
- Battery Inputs: 2
- Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm*)
- Mounting Holes: Accept 1/4" (M6) Screw
- Terminal Stud Size: 1/2" - 13 (M13)
- Weight: 1.25lb (0.57 kg)
