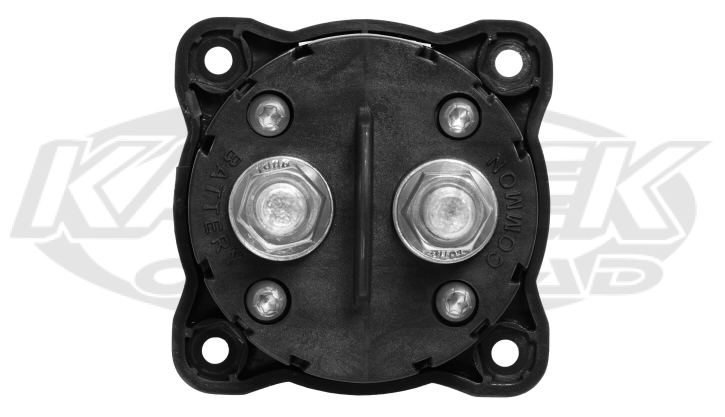

Blue Sea Systems M-Series Black Single Battery Cut Off Isolator Switch With Removable Key


Estimate Shipping
Price: $27.99
7 In Stock
Sold As:
1 Battery Switch
Part Number: BSS6005200
MFG Number:
6005200

Description

-
Features:
- Switches a single battery to a single load group
- Ignition protected—safe for installation on gasoline powered trucks and buggies
- Case design allows surface, front panel, or rear panel mounting
- Isolating cover with snap-on sections protects rear contacts
-
Specifications:
- Switch Type: Single Circuit ON-OFF
- Color: Black
- Switch Positions: 2
- Battery Combine: No
- Alternator Field Disconnect: No
- Maximum Voltage: 48V DC
- Terminal Stud Torque: 120 in-lb (13.56 Nm)
- Continuous Rating: 300A
- Intermittent Rating: 500A (5 min)
- Cranking Rating 10 sec: 1500A
- Cranking Rating 1 min: 775A
- Battery Inputs: 1
- Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm*)
- Mounting Holes: Accept #10 Screw
- Terminal Stud Size: 3/8" - 16 (M10)
- Weight: 0.62lb (0.28 kg)
