Derale 15721 180 Degree In Line Fan Thermostat AN #8 Male to AN #8 Female or 1/2" Barb to 1/2" Barb
Estimate Shipping
Price: $34.64
9 In Stock
Sold As:
1 Thermostat Switch
Part Number: DRL15721
MFG Number:
15721
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov
Description

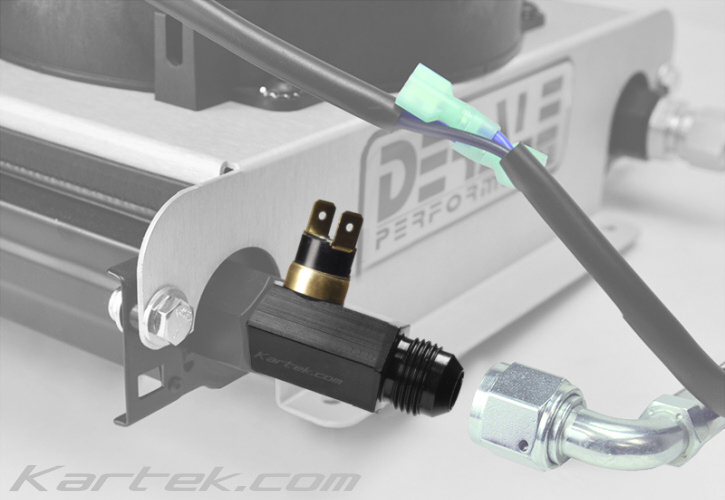

With a 180°F preset turn-on, 165°F turn-off, this AN -8 to AN -8 thermostat switch engages the fan on any remote oil cooler so that it comes on only when needed. Includes hose barb adapter fittings. Maximum 15 amp capacity, however you can use it to activate a relay for more amperage.
SpecificationsUses replacement #6-32 thread thermostat switch part number: 16728
Thread size: -8 AN male x -8 AN female
Fitting size: 1/2" male barb x 1/2" male barb
On temperature: 180°F
Off temperature: 165°F
Maximum amperage capacity: 15 amps

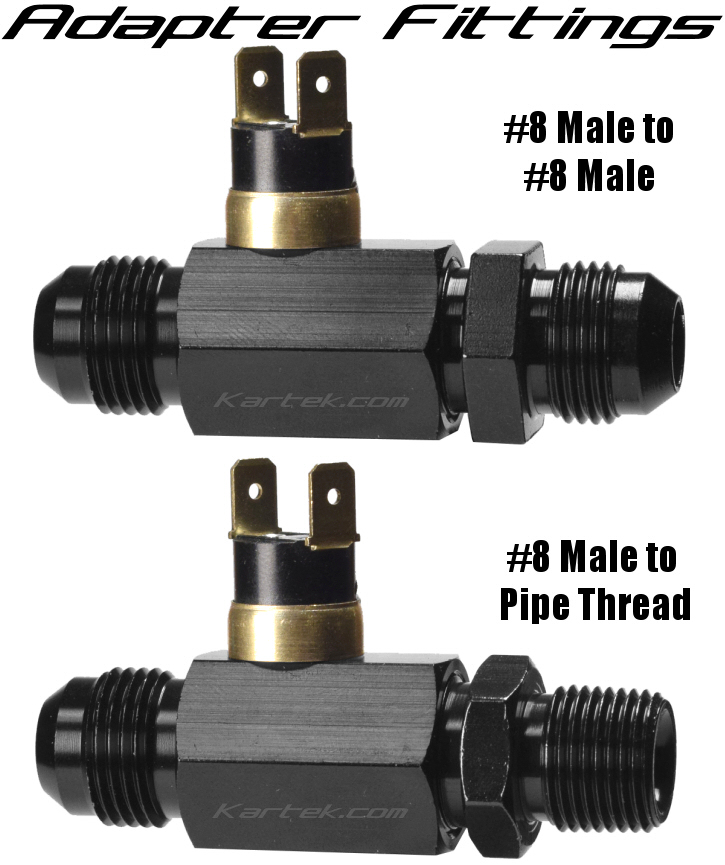

To install thermostat directly onto an oil cooler:CBR use a #10 ORB to #8 male
Derale normally already has #8 male
Long Tru-Cool use a 1/2" NPT to #8 male
Setrab Susa use a 22mm-1.5 to #8 male
Well sell all common adapter fittings listed below.
Specifications
To install thermostat directly onto an oil cooler:
Well sell all common adapter fittings listed below.
