Derale 16749 Adjustable 150-240 Degree Electric Fan Controller With 3/8" NPT Pipe Thread Sensor

Derale 16749 Adjustable 150-240 Degree Electric Fan Controller With 3/8" NPT Pipe Thread Sensor
Rough Shipping Estimate
Estimate Shipping
Price: $69.29
6 In Stock
Sold As: 1 Controller Kit

Part Number: DRL16749

MFG Number: 16749


Order this item to pickup at our Corona, CA store. You'll pay when you get here. You can pay by credit card, cash or PayPal and we'll contact you when this order is ready for pickup.


California proposition 65 warningCalifornia Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov

Description

Note: This kit includes a Beuler brand relay similar to Hella's 4RA 933.332-18 5 blade relays. Also notice that the fan's NEGATIVE wire is going to the red wire on the control box.

Derale's redesigned adjustable electric fan control kit is designed to activate up to 2 oil cooler or radiator fans with a total maximum draw of 25 amps. Includes a control box, sending unit, relay, wire harness, and electrical connectors for an easy installation. Override circuit included for either A/C or for a toggle switch (sold separately). Adjustable fan controller turn-on range from 150°F - 240°F, and turn-off preset at 10°F lower than turn-on.

Features
  • Adjustable turn-on temperature from 150-240°F
  • Turn-off temperature is preset at 10°F below turn-on temperature
  • Heavy duty 40/60 amp relay *rated at maximum 25 amp continuous draw - operates a single fan or two fans with a combined draw of 25 amps or less
  • Override circuit included
  • Ground circuit relay

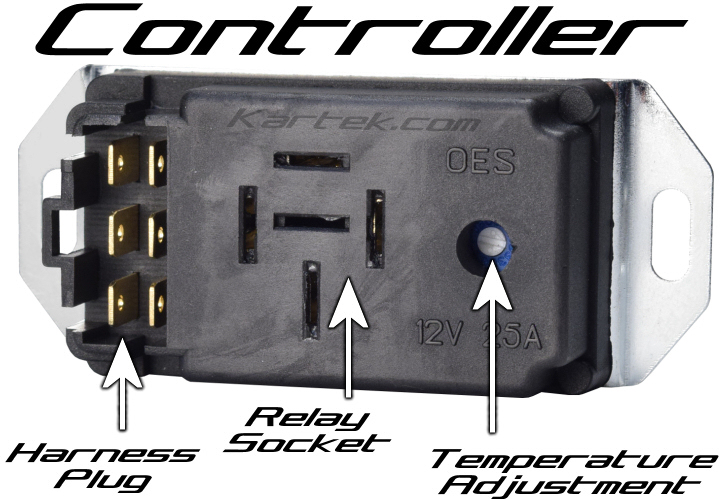

  • Control box is 1-1/2" wide 2-3/4" long
  • derale 16749 and 16759 adjustable 150 to 240 degree electric fan controller

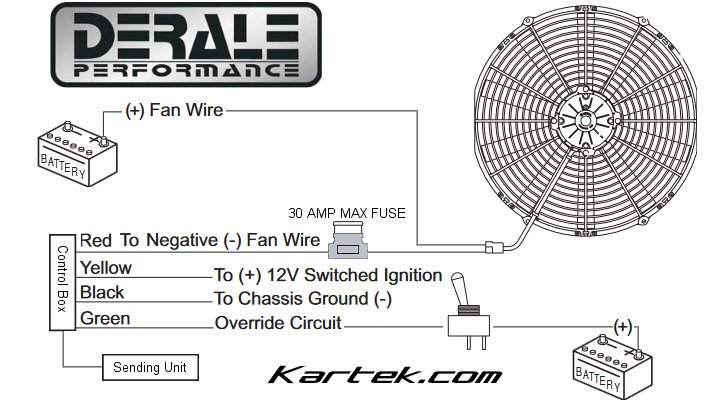

    derale 16749 and 16759 adjustable 150 to 240 degree electric fan controller wiring
