FK Rod Ends Small Head 1-1/4" Right Hand Thread 1" Hole JMX16-3T PTFE Coated Chromoly Heim Joints F2
Estimate Shipping
Price: $159.99
25 In Stock
Sold As:
1 Rod End Heim Joint
Part Number: FKBJMX163T
MFG Number:
JMX16-3T
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov
Description
Aurora Bearing Company part number cross reference:
RAM-16T-3 Small head
See also FK Rod Ends part number:
KMX16 Large head
JMX16T Large head
RAM-16T-3 Small head
See also FK Rod Ends part number:
KMX16 Large head
JMX16T Large head
Made exclusively for Kartek Offroad, FK's JMX16-3T heim joint has a smaller head as a direct replacement to the Aurora Bearing Company part number RAM-16T-3. This heim is designed for some buggies and trucks that have a small pocket on their upright spindle where the standard FK JMX16T is too large to fit. Also on rear trailing arm pivots to get the heim closer to the pivot point.
This heim is a precision 3 piece construction JMX series with a PTFE liner and uses all the same misalignment spacers and bungs that the large head JMX16T uses.

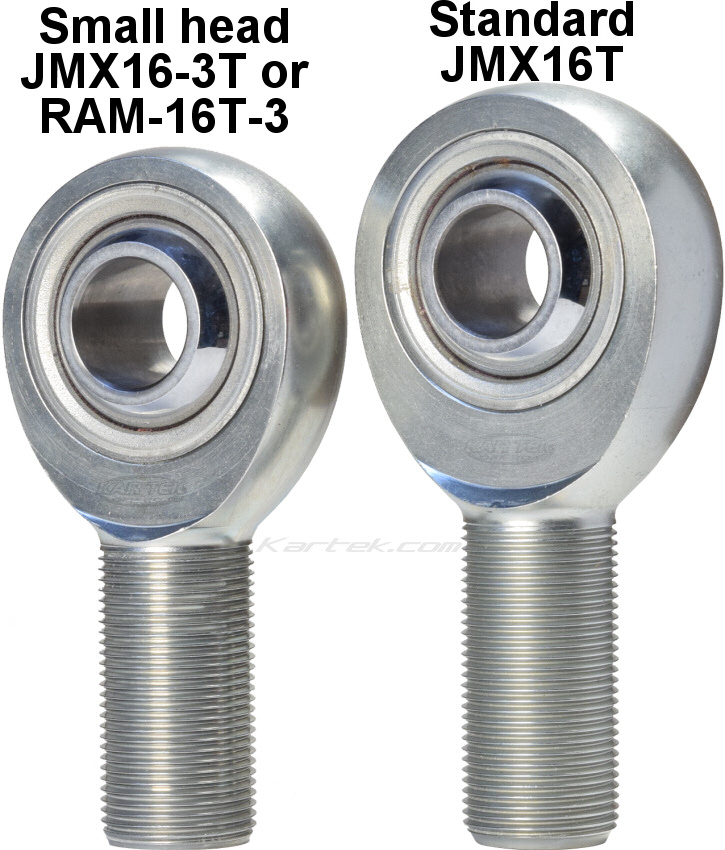

Take a look at the size comparison photo of a JMX16-3T versus a JMX16T.
This heim is a precision 3 piece construction JMX series with a PTFE liner and uses all the same misalignment spacers and bungs that the large head JMX16T uses.
Take a look at the size comparison photo of a JMX16-3T versus a JMX16T.
-
BALL
- 52100 STEEL
- Rc 56 MIN. HARD
- HARD CHROME PLATED
- ALLOY STEEL
- HEAT TREATED
- ZINC PLATED
- CHROMATE TREATED
BODY AND RACE
