Foddrill Billet Left Side 2d Camber Dbl Shear King Kong Snout Spindle For Heim Joint With 1-3/4" KP
Price: $1,210.00
3 In Stock
Sold As:
1 Spindle
Part Number: FOD136LD113D
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov
Description

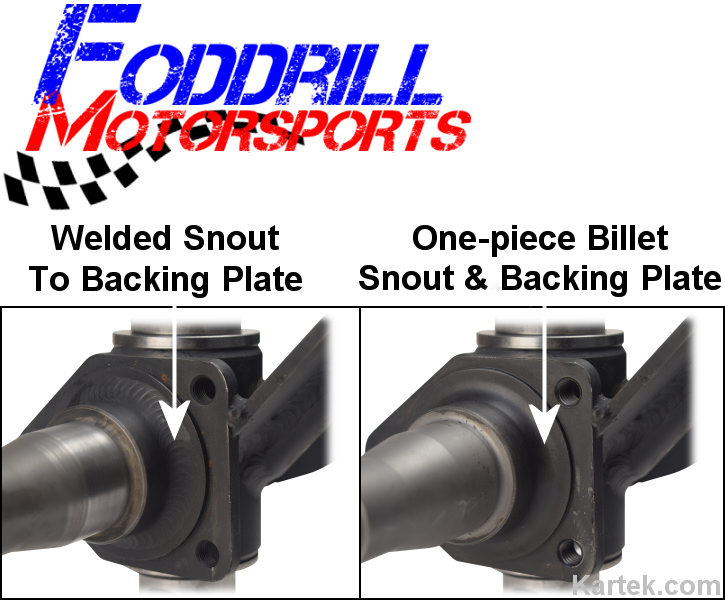

The latest in off-road racing technology from Foddrill Motorsports. The backing plate and spindle snout are machined out of one piece of billet. On a normal spindle the snout is welded to the backing plate creating a weak point for cracks.
Features:
One piece billet snout is machined into backing plate
Uses standard 18mm - 1.5 VW style spindle nuts
Foddrill's heavy duty 1-3/4" king pin
Double shear heim joint pocket
Uses a 5/8" bolt for heim joint tie rod ends
Two degree negative camber
Note: Normally you run the spacer below the heim joint.
One piece billet snout is machined into backing plate
Uses standard 18mm - 1.5 VW style spindle nuts
Foddrill's heavy duty 1-3/4" king pin
Double shear heim joint pocket
Uses a 5/8" bolt for heim joint tie rod ends
Two degree negative camber
Note: Normally you run the spacer below the heim joint.
Related Parts
Foddrill Billet Right Side 2d Camber Dbl Shear King Kong Snout Spindle For Heim Joint With 1-3/4" KP
In Stock
Price: $1,210.00
7/8" ID Link Pin Shims For Adjusting The Camber On King Kong Link Pin Front Beams Set Of 40
In Stock
Price: $23.99
Heat Treated Alloy Heavy Duty 7/8" King Kong Link Pin Set For Aftermarket Front Trailing Arms
In Stock
Price: $189.99
Foddrill Replacement 1-3/4" Diameter Beam Spindle King Pin For Combo Link Or King Kong Spindles
In Stock
Price: $159.99
SKF 18546 King Kong Spindle Inner Bearing Seal 65mm Outside Diameter 48mm Inside Diameter
In Stock
Price: $14.99
Foddrill Motorsport's spindles are available tapered for International tie rod ends, for a 5/8" bolt for a heim joint, or double shear for a 5/8" bolt for a heim joint. Below is a list of their part numbers. For example if you search for FOD101 you'll get the 3 variations of that spindle.
