Fox 3" Coil Over or 3.5", 4", 4.4" Bypass Shock Bottom Eyelet 2.5" Top Edge To Cntr Use 3/4" Uniball
Price: $68.61
5 In Stock
Sold As:
1 End Loop
Part Number: FOX21301234A
MFG Number:
213-01-234-A
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov
Description
It's important to realize that anything 2.5" or greater, regardless of shaft diameter, all have 7/8" thread on the bottom. So for example, if you have a 7/8" shaft, 1" shaft, 1-1/8" shaft or 1-5/8" shaft, they all have 7/8" thread on the bottom.

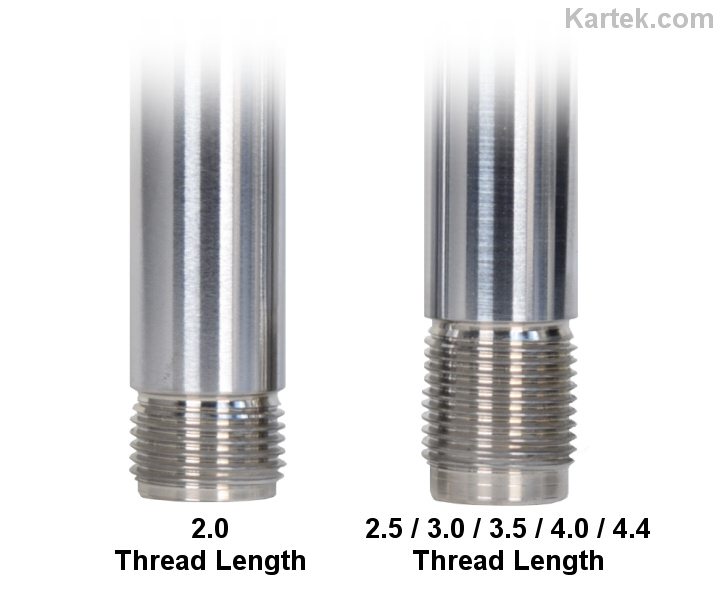

A common question that we get is, "can any Fox 7/8" threaded eyelet be used on any Fox shock?". It depends on the shaft and how deep the threads are on the eyelet. A Fox 2.0" shock with a 7/8" shaft has a shorter thread on the shaft and the eyelet is threaded shallower than a 2.5" or larger shock. See the example of the thread length on this shaft photo.
You'll also have to consider the size of the uniball when switching between different 7/8" eyelets.
This eyelet uses a 3/4" uniball. It has a 7/8"-14 thread pitch. It has "deep" threads for any shock LARGER THAN a 2.0". It can be used on a Fox bypass, smoothie, or coil over.
