Hall Designs Dust Cover For 9 Bolt MTM Redhead Female Single Dry Break Receivers

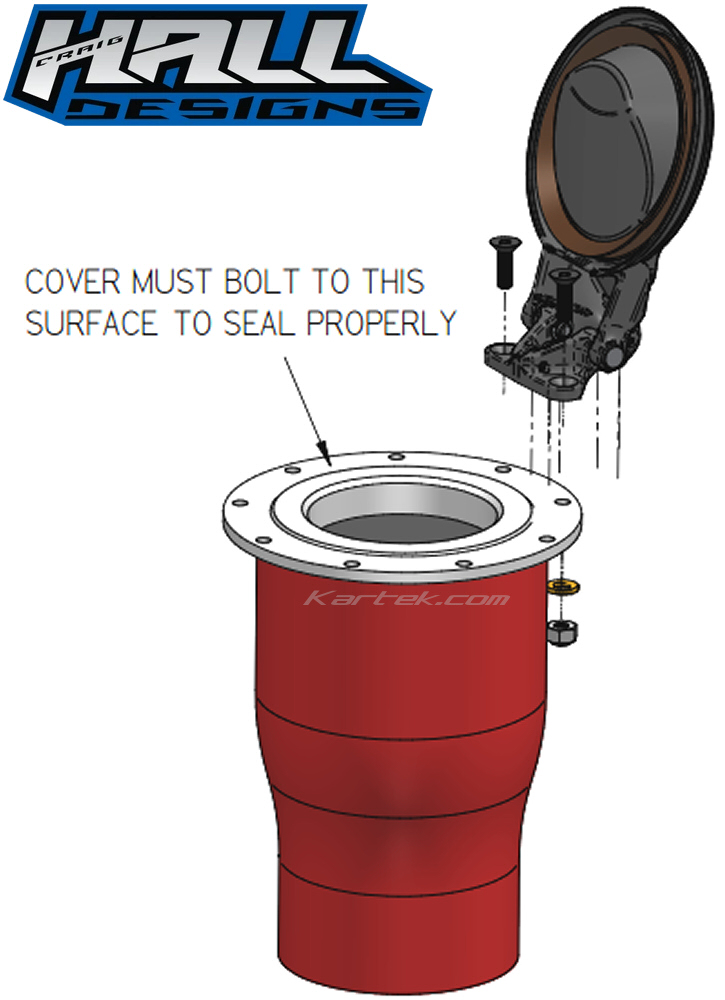

Note: Do NOT let the cover plate snap shut until you mount it! The mounting bracket will contact the cover and may crack the plastic.

One of the biggest problems in off-road racing is getting dirt, mud, sand, silt or rocks in your dry break receiver. Keep your dry break receiver clean! Simple spring loaded cover keeps a tight seal against fill plate. Once opened, the spring holds the cover open for refueling. Durable nylon construction with hardware.

Designed for the red anodized 2-1/4" and 3" Fuel Safe or MTM Inc. Redhead receiver with 9 bolt mounting ring. It will NOT work with the PP20FRM 2-1/2" black anodized receiver or other brands.

Can be used with the PP20FTM - MTM Inc. Redhead female single dry break receivers, but you'll have to drill two more holes on the receiver flange, because Hall's bolt pattern is for PP20FRM-AL and PP20FRMAL-3 dry breaks that have the aluminum bulbs.

Nylon cover and hinged bracket

Viton seal

Stainless steel roll pins and hinge pins

Mounting bolts and nyloc lock nuts included
