Kartek Wobble Stopper Kit For HIN16TA, WSSX16T, AIN16T, AIB16T3 Uniballs To Build Truck Trailing Arm
IMPORTANT: A 1" bore uniball is required for this kit and is SOLD SEPARATELY! The kit DOES NOT include the uniball because there are several to choose from. They are listed below.
Estimate Shipping
Price: $124.99
106 In Stock
Sold As:
1 Wobble Stopper Assembly
Part Number: KTK9044HDWSKIT
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov
Description

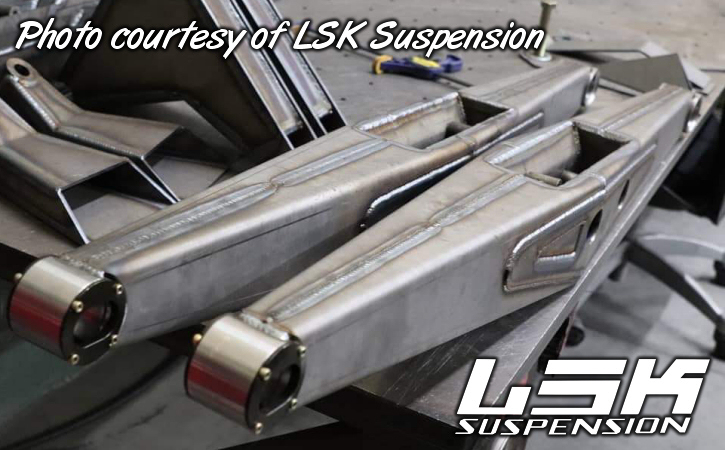

100% American made, overbuilt but not overpriced like the competition. Our wobble stoppers are designed for 3 and 4 link truck trailing arm rear suspension to combine the articulation of a standard 1" bore uniball with the rigidness of a composite bushing. The two slotted end caps guide the range of movement of the uniball to eliminate the rear end sway that is common with link suspension setups on trucks.
IMPORTANT: A 1" bore uniball is required for this kit and is SOLD SEPARATELY! The kit DOES NOT include the uniball because there are several to choose from. They are listed below.
NOTE: Make sure you make long enough tabs. Our PT1434CM are too short. The wobble stopper is 2-3/4" outside diameter. Divide that in half and you get 1-3/8" from center of bolt hole to outer edge of wobble stopper if it were parallel to the tube that you're welding your tabs to. You'll need even more room to compensate for the fact that the wobble stopper's end plates are oval shaped allowing it to rock slightly left to right.
The weldable surface is 2" wide. You'll use a 3/4" bolt for the pivot. The 10034WSS are the normal spacers that we provide in this wobble stopper kit and are 3-1/16" wide from mounting tab to mounting tab.
The 10034SRTES will also work and they're 3-1/2" wide if you need extra width for your pivots, but they're sold separately.
The 10034SRTES will also work and they're 3-1/2" wide if you need extra width for your pivots, but they're sold separately.
IMPORTANT: A 1" bore uniball is required for this kit and is SOLD SEPARATELY! The kit DOES NOT include the uniball because there are several to choose from. They are listed below.
-
Kit Includes:
- Two slotted end plates
- Eight 1/2" long 10-32 socket head cap screws (allen bolts)
- Two 3/4" bolt spacers for 3-1/16" tab width
- One 2" wide 2-3/4" diameter weldable housing
- One snap ring (you only need one per wobble stopper)
- 5" long if using standard spacers, stover or nyloc nut, two flat washers and two 1/4" thick tabs
- 5-1/2" long if using extra wide spacers, stover or nyloc nut, two flat washers and two 1/4" thick tabs
- 4-1/2" long if using standard spacers, stover nut, one flat washer and two 1/4" thick tabs
- 5" long if using extra wide spacers, stover nut, one flat washer and two 1/4" thick tabs
Typical Bolt Length If Using Grade 9 Hex Bolts:
Typical Bolt Length If Using Our 12 Point Flange Bolts:
NOTE: Make sure you make long enough tabs. Our PT1434CM are too short. The wobble stopper is 2-3/4" outside diameter. Divide that in half and you get 1-3/8" from center of bolt hole to outer edge of wobble stopper if it were parallel to the tube that you're welding your tabs to. You'll need even more room to compensate for the fact that the wobble stopper's end plates are oval shaped allowing it to rock slightly left to right.
