Peterson 09-1352 Billet Remote Oil Filter Mount #12 Inlet/Outlet For Fram HP6 K&N HP-5001 Wix 51222R
Email us for current pricing and availability
Sold As:
1 Filter Mount
Part Number: PET091352
MFG Number:
09-1352
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov
Description

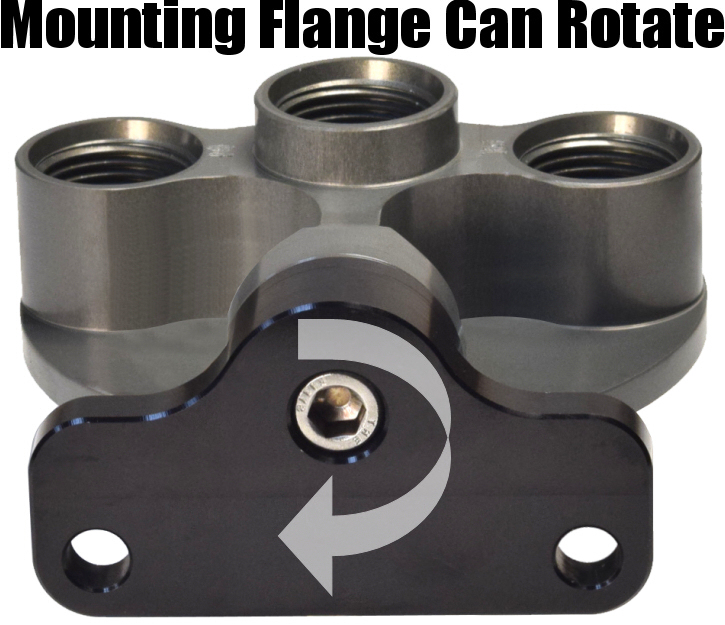

Peterson Fluid Systems billet aluminum oil filter mounts are hard anodized, high flow and the mounting flange can rotate any direction.
Important notes: Depending on the diameter of your gauge or oil pressure sensor, you might have to run a 45 or 90 degree adapter fitting in order to utilize the 1/8" port on the front.
Fits:
Fram HP6A
K&N HP-5001
WIX 51222R
WIX 57003R
AN -12 ORB o-ring boss (1-1/16" 12 thread) inlet and outlet. It does include one -12 ORB plug, one 1/8" NPT plug and two -12 ORB to -12 male fittings but we do have other size fittings listed below.
There are two inlet ports and one outlet port. There is a 1/8" NPT plug on the front so you can run an oil pressure gauge, oil pressure sensor or oil temperature sensor. The filter nipple is 1-1/2"-12 thread.
AN -12 ORB o-ring boss (1-1/16" 12 thread) inlet and outlet. It does include one -12 ORB plug, one 1/8" NPT plug and two -12 ORB to -12 male fittings but we do have other size fittings listed below.
There are two inlet ports and one outlet port. There is a 1/8" NPT plug on the front so you can run an oil pressure gauge, oil pressure sensor or oil temperature sensor. The filter nipple is 1-1/2"-12 thread.
