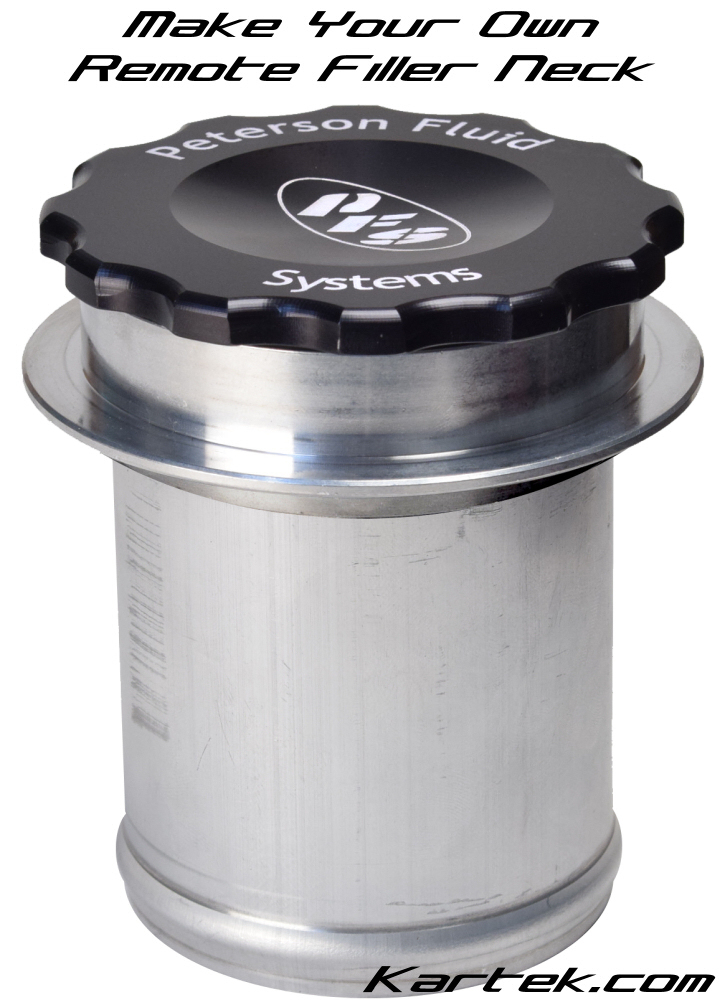

Peterson Fluid Systems 08-0621 Aluminum 3" Fuel Or Oil Cap With Aluminum Weld On Filler Neck

Peterson Fluid Systems 08-0621 Aluminum 3" Fuel Or Oil Cap With Aluminum Weld On Filler Neck
Rough Shipping Estimate
Estimate Shipping
Price: $79.99
1 In Stock
Sold As: 1 Neck With Cap

Part Number: PET080621

MFG Number: 08-0621


Order this item to pickup at our Corona, CA store. You'll pay when you get here. You can pay by credit card, cash or PayPal and we'll contact you when this order is ready for pickup.


California proposition 65 warningCalifornia Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov

Description

Peterson's cap and bung can be used for all sorts of applications such as fuel tanks, oil tanks, or dry sumps. The neck can be directly welded to your tank, or it can slide over a 3" aluminum pipe and be welded to make your own remote filler neck.

Note: Make sure you use anti-seize on the cap.

Dimensions:
  • Cap Thread: 2.90" Major 12 TPI (threads per inch)
  • Neck Flange Thickness: 1/16"
  • Neck Flange Outside Diameter: 4"
  • Neck OD Below Flange: 3-1/8" (fits into 3-1/8" hole)
  • Neck ID Below Flange: 3" (fits over 3" pipe)
  • Neck OD Above Flange: 3-5/16"
  • Neck Height Above Flange: 5/8" (not including cap)

    • Replacement Parts List:
  • 08-0621 Cap and bung assembly
  • 08-0622 Cap only
  • 08-0623 Aluminum filler neck only
  • 08-0624 O-ring for 3" cap

    • peterson fluid systems 08-0621 billet aluminum remote mount fuel filler necks
