PME Driver Side 2-1/2" Hollow Full Floater Hub Rear End Spindle Snout 2-1/2" Spindle Length
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov
Description
We call this a Pro 2 snout. Left hand thread weld on spindle. 2.365" major diameter on the threads. The backside isn't finished (DIMENSION - D) This allows you to turn down the OD (currently 3-1/2") on a lathe in order to fit the snout into whatever diameter axle tubes are on your rear end.
Works With:
1.5" x 35 spline axles
1.7" x 40 spline axles
1.9" x 45 spline axles

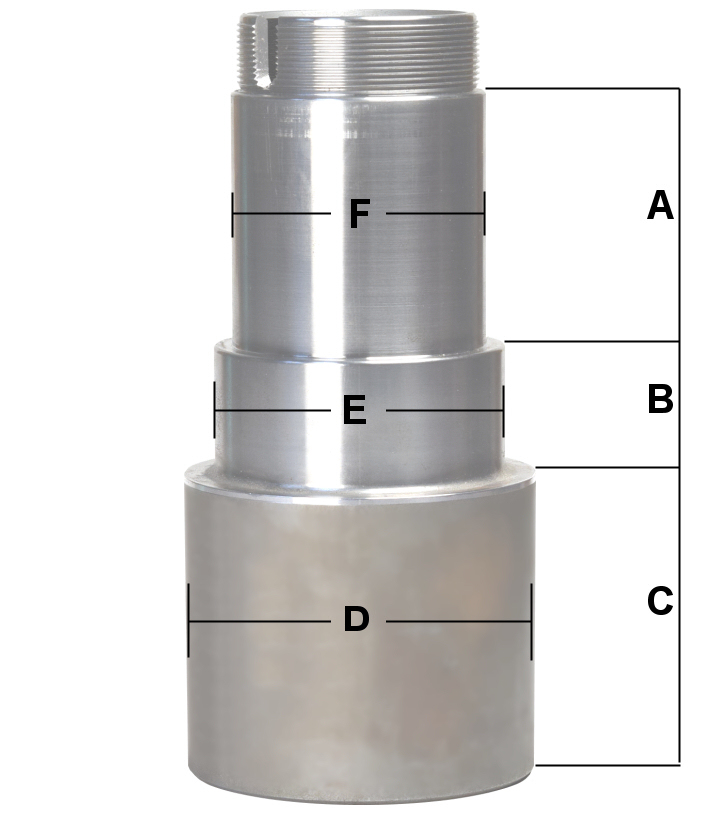

Dimensions:Completely Hollow
A Spindle length 2-1/2"
B Shoulder length 1-1/4"
C Back shoulder length 3"
D Back shoulder diameter 3-1/2" (unfinished)
E Shoulder diameter 2-7/8"
H Spindle diameter 2-1/2"
18 Threads per inch
2.365" Major diameter on the threads
Dimensions:
