Pro-Am 38-1/4" Total Length 300M 33 Spline Porsche 934 Racing Gun Drilled Hollow Axles
Below, above the "add to cart" button there is a drop down menu for type of brakes. We want to know what type of brakes you're using to ensure that you have the appropriate spline length for your application.Need a special length axle? We can cut any of our axles and regroove them for the clip. We charge per cut. Orders must be in before 12:00 Noon PST for same day shipping. Cut axles are NOT REFUNDABLE!
Price: $1,049.99
3 In Stock
Sold As:
2 Porsche 934 Axles
Part Number: PRM32838250GD
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov
Description
ProAm's 300M IRS axles are specially designed for the needs of today's off-road racers. The axles are machined from 300M steel alloy.
Specifications:
Material: 300m
Total Length: 38-1/4"
Clip To Clip Length: 37-3/4"
Spline Length Side A:
Spline Length Side B:
Measuring axle length for VW Stub axle, Micro Stub Axle, or Mid-Board Micro Stub Axle
Measuring axle length for Mid-Board Foater Hub or Out-Board Floater Hub
kartek off-road, offroad, porsche 934, 935
Specifications:
Material: 300m
Total Length: 38-1/4"
Clip To Clip Length: 37-3/4"
Spline Length Side A:
Spline Length Side B:
Need a special length axle? We can cut any of our axles and regroove them for the clip. We charge per cut. Orders must be in before 12:00 Noon PST for same day shipping. Cut axles are NOT REFUNDABLE!

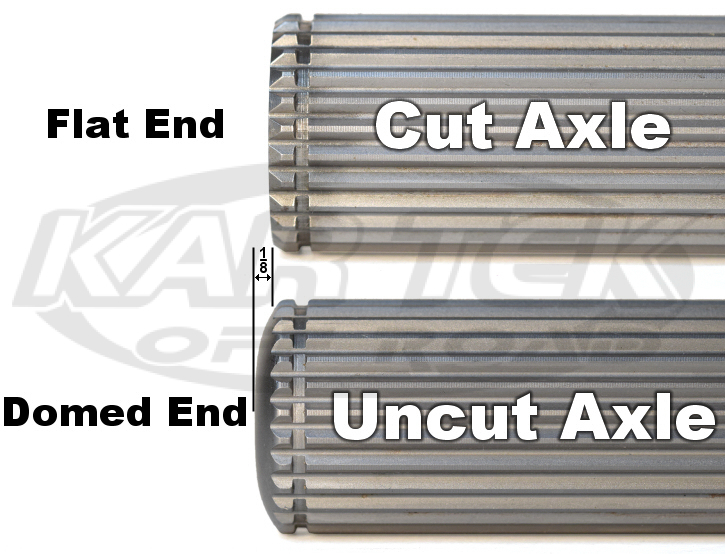

ProAm's axles are domed on both ends. This dome adds 1/8" to each side, 1/4" overall. The hemispherical dome shape prevents the splines from being damaged which would prevent you from removing your CV joint. If we cut the axle, it will now be flat.
ProAm's axles are domed on both ends. This dome adds 1/8" to each side, 1/4" overall. The hemispherical dome shape prevents the splines from being damaged which would prevent you from removing your CV joint. If we cut the axle, it will now be flat.
Measuring axle length for VW Stub axle, Micro Stub Axle, or Mid-Board Micro Stub Axle
- Check your toe in/out wheel alignment.
- Lift the hub up, so that if it did have an axle, the axle would be at zero degrees, parallel to the ground.
- Measure from the BOTTOM of the drive flange cup on the transmission to the BOTTOM of the stub axle cup on the brakes. Reference Figure A
- Subtract 1/4" to 3/8". That is your TOTAL axle length.
- Check both sides of the vehicle. It is very common to have two different length axles.
- Now use a PVC pipe as a mock-up axle. Cut grooves 1/4" down on either end into each end of the PVC for your clips. Install your CV joints and mock-up axle.
- Lift the vehicle so the tires drop down to full droop.
- Grab your mock-up axle and make sure that you have 1/4" to 3/8" free play. Reference Figure B
- If you have 1/4" to 3/8" free play at zero degrees and at full droop then you're perfect.

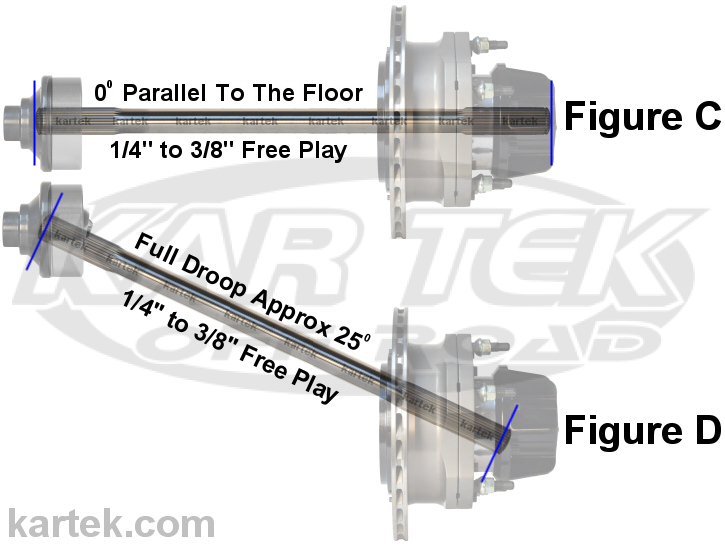

Measuring axle length for Mid-Board Foater Hub or Out-Board Floater Hub
- Check your toe in/out wheel alignment.
- Install CVs on the transmission and on the hub side.
- Lift the vehicle so the tires drop down to full droop. Reference Figure D
- Measure from OUTSIDE edge of star to OUTSIDE edge of star. This is your clip to clip dimension. Add 1/2" and that is your TOTAL axle length dimension.
- Check both sides of the vehicle. It is very common to have two different length axles.
- Now use a PVC pipe as a mock-up axle. Cut grooves 1/4" down on either end into each end of the PVC for your clips. Install your CV joints and mock-up axle.
- Grab your mock-up axle and make sure that you have 1/4" to 3/8" free play at full droop and at zero degrees. Reference Figure C and Figure D
- If you have 1/4" to 3/8" free play at zero degrees and at full droop then you're perfect.
