Setrab 31-TS180-10 Two Wire 180 Degree In Line Fan Thermostat AN #10 Male to AN #10 Female
Estimate Shipping
Price: $42.28
1 In Stock
Sold As:
1 Thermostat Switch
Part Number: SET31TS18010
MFG Number:
31-TS180-10
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov
Description

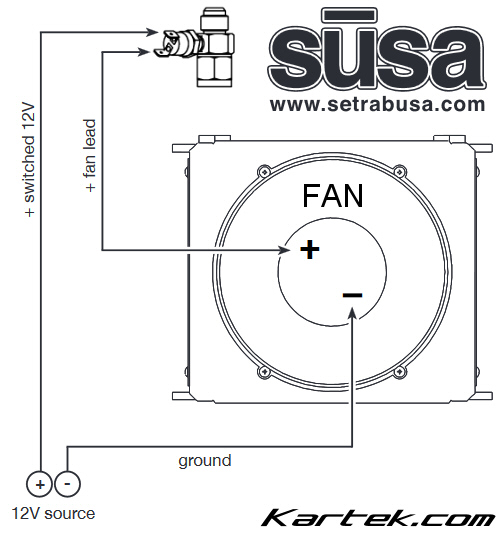

Sūsa's miniature thermal switch for oil cooler or radiator fans is rated for 12 volt at 10 amps. It can also be used to activate a relay for fans that require more amperage. You can also purchase Sūsa's TS180 switch and Fragola's 495008 fitting to save a few dollars.
Switch Technical Information
Contact type: Normally open
Action temp: 180.6°F ± 3.6°F
Auto reset temp: 165.6°F ± 3.6°F
Terminal size: 1/4" tabs
Circuit resistance: 50mΩ max.
Insulation resistance: 100MΩ min. at DC 500V
Dielectric strength: AC 1250V for one minute or AC 1800V for three seconds
Electrical rating: 16A 250VAC\15A 125VAC 10A 250VAC (resistive load)
Operating life and approvalsUL CUL: 100,000 cycles: 15A 125VAC / 10A 250VAC
ENEC17: 100,000 cycles: 15A 125VAC / 10A 250VAC 10,000 cycles: 16A 250VAC
CQC: 10,000 cycles: 16A 250VAC
TUV: 100,000 cycles: 16A 250VAC
Operating life and approvals
