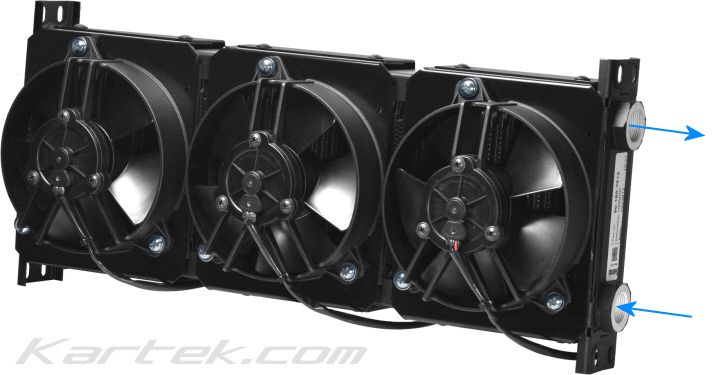

Setrab FP160M22I ProLine Standard 1 Series Fan Pack Oil Cooler With Three 5-1/4" Fans 22mm Inlet/Out
Estimate Shipping
Price: $758.63
1 In Stock
Sold As:
1 Oil Cooler
Part Number: SETFP160M22I
MFG Number:
FP160M22I
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov
Description
-
Specifications:
- Includes three 12 volt 342 CFM 5-1/4" Spal 30103011 puller fans sūsa part number FA3011-08
- Includes a 60 row 1 series ProLine STD Oil cooler part number 50-160-7612
- Requires m22 fittings
- 4-1/2" thick including the fans
- 18-1/4" tall not including fittings*
(see note below) - 7" wide not including the mounting flanges*
(see note below) - For flat surface mounting use 23-1002 brackets
The 1-series Setrab ProLine STD oil cooler is the narrowest width from their standard series of oil coolers. The stacked plate style of Setrab's STD range oil coolers is compact with state-of-the-art brazing technology that makes a durable and highly efficient design.
Warning! Fragola, sūsa Setrab, and XRP all make 22mm-1.5 thread fittings. The 22mm thread on Fragola's fittings is too long. This oil cooler will only work with the short thread ORB o-ring boss fittings from sūsa Setrab or XRP.
sūsa Setrab USA ORB fitting part numbers:
22-M22AN04-SE = AN #4 Male to m22 Straight
22-M22AN06-SE = AN #6
22-M22AN08-SE = AN #8
22-M22AN10-SE = AN #10
22-M22AN12-SE = AN #12
22-M22AN16-SE = AN #16
22-M22BJAN06-90 = AN #6 Male to m22 Banjo
22-M22BJAN08-90 = AN #8
22-M22BJAN10-90 = AN #10
22-M22BJAN12-90 = AN #12
XRP ORB fitting part numbers:
922004 = AN #4 Male to m22 Straight
922006 = AN #6
922008 = AN #8
922010 = AN #10
922012 = AN #12
