Small Tie Rod To Heim Joint Adapter 7.5 Degree For HRSMX10T 5/8" Hole Built In Misalignment Heim
Estimate Shipping
Price: $36.99
55 In Stock
Sold As:
1 Tie Rod To Heim Joint Adapter With Nuts
Part Number: KTKHEP58916
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov
Description

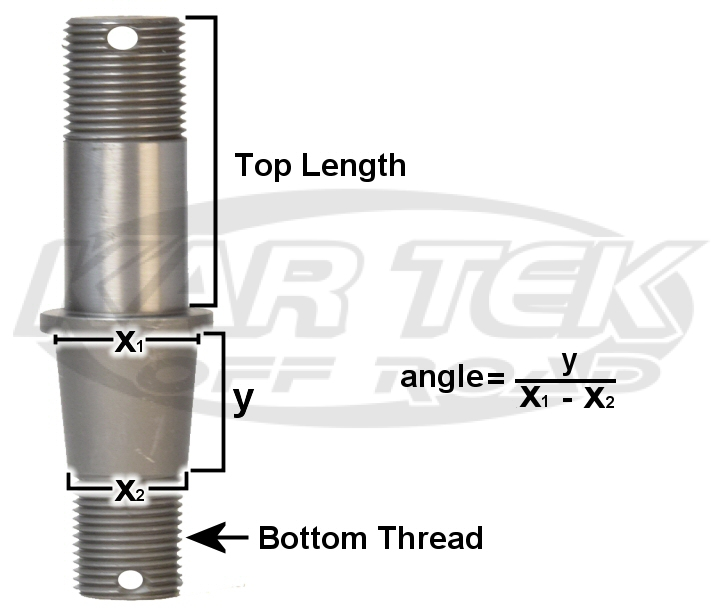

Our heim joint adapters also called extension pins allow you to put a nice heavy duty heim joint where a tie rod end used to be. This is great for the strength as well as the angle because a heim can achieve a higher degree of angle than a tie rod end or drag link. This particular adapter fits Wright, EMPI, Latest Rage, Saco, Pro-Am, or Howe rack and pinions that have the International truck taper. It also fits some models of Ford Bronco and Ranger. To confirm the angle and size of your current tie rod end, use the formula for slope (sometimes referred to as "rise over run") where you take the length of the taper "y" and divide it by the top diameter "x1" subtracted from the bottom diameter "x2". See below:
Note: This is the correct pin for EMPI, Foddrill, Latest Rage, Saco, Tweed Designs, Woods, or Wright international tapered buggy spindles. If you have larger truck spindles that have a 5/8" bottom hole, then purchase part number KTKHEP58580.
For use with FK Bearing's HRSMX10T or HRSMXL10T allows up to 19 degrees max angle
Top Length: 1-7/8"
Top Thread: 5/8-18
Top Diameter: 5/8"
Bottom thread: 9/16-18
Bottom Taper: 7.5 Degree
x1 Diameter: 0.720"
x2 Diameter: 0.600"
y Length: 0.900"
Note: This is the correct pin for EMPI, Foddrill, Latest Rage, Saco, Tweed Designs, Woods, or Wright international tapered buggy spindles. If you have larger truck spindles that have a 5/8" bottom hole, then purchase part number KTKHEP58580.
For use with FK Bearing's HRSMX10T or HRSMXL10T allows up to 19 degrees max angle
Top Length: 1-7/8"
Top Thread: 5/8-18
Top Diameter: 5/8"
Bottom thread: 9/16-18
Bottom Taper: 7.5 Degree
x1 Diameter: 0.720"
x2 Diameter: 0.600"
y Length: 0.900"
