Price: $871.07

Call or email for availability

Sold As: 2 Sway Bar Arms

Part Number: SAW4119

MFG Number: 4-119

California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov

Description

Sway-A-Way's off-road sway bar arms are perfect for those building a custom sway bar setup. These robust arms are CNC machined out of solid billet 6061-T6 aluminum and feature a 5° kick to help with frame clearance (SEE BELOW PHOTO). The arms mate with plated clevis plates using grade 8 hardware, giving you three holes of adjustment that are 1" apart. These arms pair perfectly with our 300m off-road sway bars.

Pocketed 6061-T6 Billet Aluminum
Red Anodized
1-1/2"-35 Spline 30 Degree Pressure Angle
5° Kick
3 Hole Adjustable
Clevis Width: 1.50"
Hole 1: 19-1/2" Center To Center
Hole 2: 20-1/2" Center To Center
Hole 3: 21-1/2" Center To Center

Heim joint ideas that you can use to make your sway bar links:

5/8" Use JMXL10T / JMX10T / HMA5812S / CMTRHD-58

3/4" Use JMXL12T / JMX12T / KTK3412SRTF/ CMTR-34

7/8" Use JMXL14T770 / JMX14T770 / KTKHMA7812S / CMTRHD-78

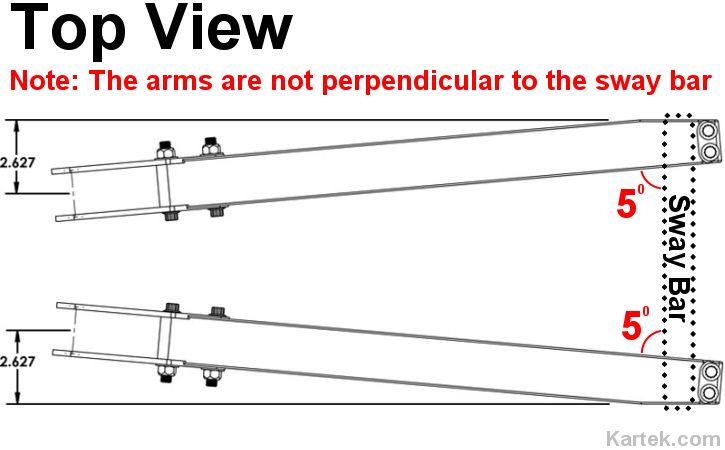

sway a way 4-119 billet aluminum 35 spline trophy truck sway bar arms offset diagram
