Wilwood 260-8420 Lever Action Brake Proportioning Valve 1/8" NPT National Pipe Tapered Thread In/Out

Wilwood 260-8420 Lever Action Brake Proportioning Valve 1/8" NPT National Pipe Tapered Thread In/Out
Rough Shipping Estimate
Estimate Shipping
Price: $96.18
1 In Stock
Sold As: 1 Brake Proportioning Valve

Part Number: WIL2608420

MFG Number: 260-8420


Order this item to pickup at our Corona, CA store. You'll pay when you get here. You can pay by credit card, cash or PayPal and we'll contact you when this order is ready for pickup.


California proposition 65 warningCalifornia Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov

Description

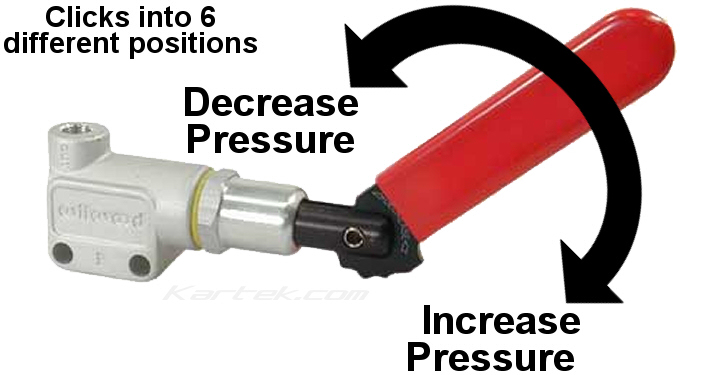

On this proportioning valve, the red handle clicks up and over the valve into 6 different positions. The handle does not turn like a knob. It provides a visual reference for how much brake bias you have.

Wilwood's adjustable proportioning valve delivers precise pressure metering and strength from a compact forged billet design.

Pressure adjustments range from 150-1200 PSI and provide a maximum decrease of 57% in line pressure, the most of any available valve. This proportioning valve has six preset points actuated by moving a lever allowing racers to quickly adjust brake bias during a race. The lever clicks into the six positions for positive adjustment. Valves is light weight and has two 1/4" side mounting holes spaced 1" apart. The inlet and outlet ports are 1/8"-27 NPT pipe thread.

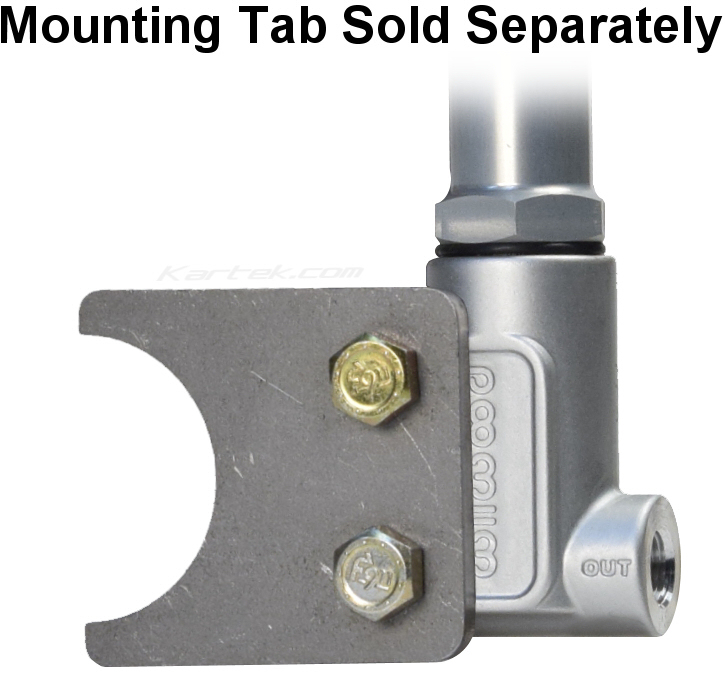

wilwood brake pressure proportioning valves regulators mounting tab

wilwood 260-8420 6 position lever action style brake pressure proportioning valves regulators
