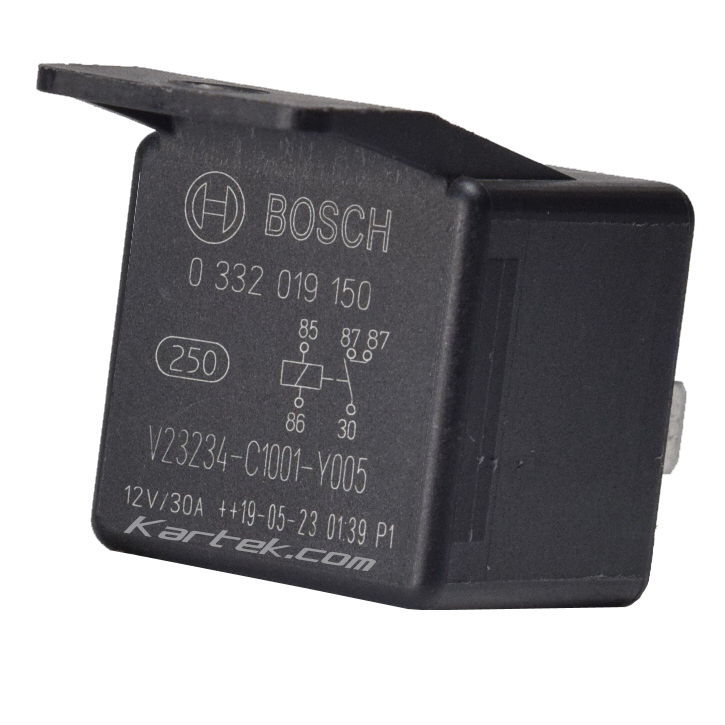

WR1 Relay Kit With Relay Socket, Pigtail Wires And 30 Amp Relay For Fans, Ignition Or Lights

Warning! Depending on availability, the kits that we have may or may not come with the fuse holder.

This 12 volt 30 amp relay kit was originally designed to take the amp load off of your VW ignition switch. Also call a "hard start" or "hot start" relay. It provides a better alternative for starting VW air cooled engines over the OEM wiring by providing more power to the starter solenoid.

VW starter ignition wiring:

• Disconnect the ignition switch wire (usually a red wire with a black stripe) from the starter solenoid and attached it to the blue #85 spade wire of the relay.
• Attach the black #87 wire of the relay to the starter solenoid.
• Disconnect the battery cable from the starter solenoid terminal and attach the large red #30 wire of the relay to the starter solenoid terminal. Then re-attach the battery cable to the starter solenoid terminal.
• Attach the yellow #86 wire from the relay to a solid non-corroded ground connection.

This is a conventional 5 blade relay with an inline 15 amp fuse. You can also use it for other purposes such as fans or lights. Important Note: Always stop and look at the relay to note the positions of each number on each blade! For example Hella's black 40 amp relays have their #30 constant power in a different position than the Hella blue fused relays, but the plug or box will fit either of those relays.
