CBM 11417 Adapter Flywheel For Chevy LS1, LS2, LS6, LS7, 4.8, 5.3 For 7-1/4" Tilton Cluch Disc

CBM 11417 Adapter Flywheel For Chevy LS1, LS2, LS6, LS7, 4.8, 5.3 For 7-1/4" Tilton Cluch Disc
Rough Shipping Estimate
Estimate Shipping
Price: $349.99
Call or email for availability
Sold As: 1 Flywheel

Part Number: CBM11417

MFG Number: 11417


Order this item to pickup at our Corona, CA store. You'll pay when you get here. You can pay by credit card, cash or PayPal and we'll contact you when this order is ready for pickup.


California proposition 65 warningCalifornia Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov

Description

This pot (flat) flywheel is for use with the small VW style bell housing transmission such as Albins AGB, Fortin, PBS, Weddle HV and Tilton's 4 disc clutch pack. It has a standard 130 tooth VW ring gear on it for the starter.

If you have the larger Chevy bell housing then use the 11420 and separate 12580709 flexplate.

    Parts required for clutch assembly:
  • Tilton Racing 7-1/4" clutch cover (includes floater plates and pressure plate):
  •   66-514HORA Orange spring color 280 lb-ft per plate torque capacity
      66-514HG Gray spring color 340 lb-ft per plate torque capacity
      66-514HGG Double gray spring color 380 lb-ft per plate torque capacity
      66-514HGGG Triple gray spring color 415 lb-ft per plate torque capacity

  • Tilton Racing 64185-4-VRRR-36: 7-1/4" 4 plate 8 rivet 26 spline metallic clutch disc pack
  • CBM 11417 Flywheel with ring gear
  • Six 11mm 1.5 thread x 23mm bolts for flywheel
  • Six 8mm 1.25 Thread 55mm for the pressure plate (clutch cover)

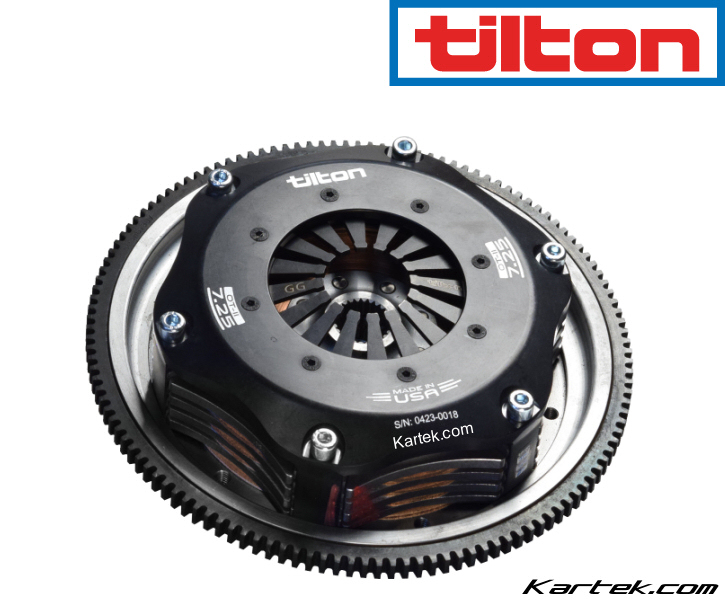

tilton racing 66-504hgg heavy duty metallic racing clutch and 64185-4-vrrr-36 four plate disc on cbm 11417 flywheel
