CBM 11420 Adapter Flywheel For Chevy LS1, LS2, LS6, LS7, 4.8, 5.3 For 7-1/4" Tilton Cluch Disc
Estimate Shipping
Price: $359.99
Call or email for availability
Sold As:
1 Flywheel
Part Number: CBM11420
MFG Number:
11420
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov
Description
This pot (flat) flywheel is for use with a Chevy bell housing transmission such as Albins AGB, Fortin, PBS, Weddle HV, CBM's 12580709 adapter flexplate and Tilton's 4 disc clutch pack. It does NOT have a ring gear on it for the starter because you use the teeth of the flexplate for the starter.
If you have the little VW style bell housing then use the 11417 flywheel.
If you have the little VW style bell housing then use the 11417 flywheel.
-

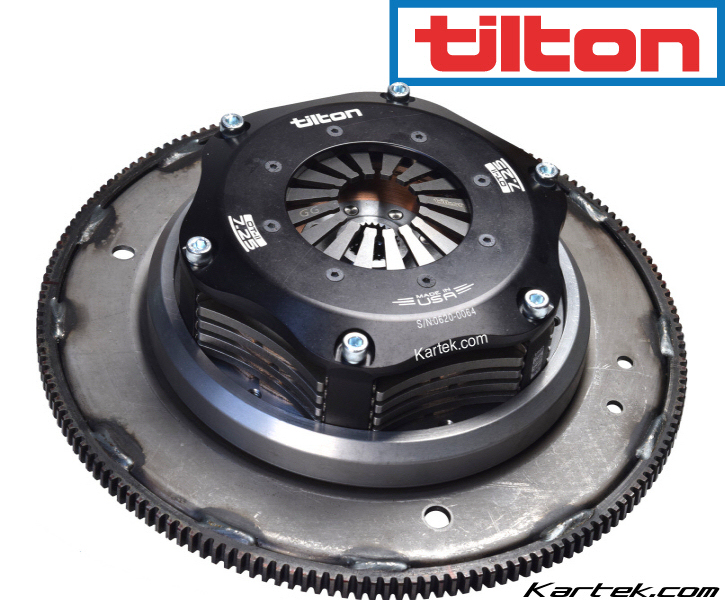

Parts required for clutch assembly:
- Tilton Racing 7-1/4" clutch cover (includes floater plates and pressure plate): 66-514HORA Orange spring color 280 lb-ft per plate torque capacity
- Tilton Racing 64185-4-VRRR-36: 7-1/4" 4 plate 8 rivet 26 spline metallic clutch disc pack
- CBM 11420 Flywheel without ring gear
- CBM 12580709 Flexplate
- Six 11mm 1.5 thread x 1-5/16" bolts for flywheel through flexplate
- Six 8mm 1.25 Thread 55mm for the pressure plate (clutch cover)
66-514HG Gray spring color 340 lb-ft per plate torque capacity
66-514HGG Double gray spring color 380 lb-ft per plate torque capacity
66-514HGGG Triple gray spring color 415 lb-ft per plate torque capacity
