FK Rod Ends 1-1/4" Right Hand Thread 1" Hole KMX16 Nylon Coated Heim Joints
Estimate Shipping
Price: $34.99
40 In Stock
Sold As:
1 Rod End Heim Joint
Part Number: FKBKMX16
MFG Number:
KMX16
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov
Description
Warning: This KMX16 heim has a larger head than the Aurora RAM-16T-3. If you're replacing Aurora heims, then use FK's part number JMX16-3T instead.
See also FK Rod Ends part number:
JMX16-3T Small head
JMX16T Large head same as the KMX16
See also FK Rod Ends part number:
JMX16-3T Small head
JMX16T Large head same as the KMX16

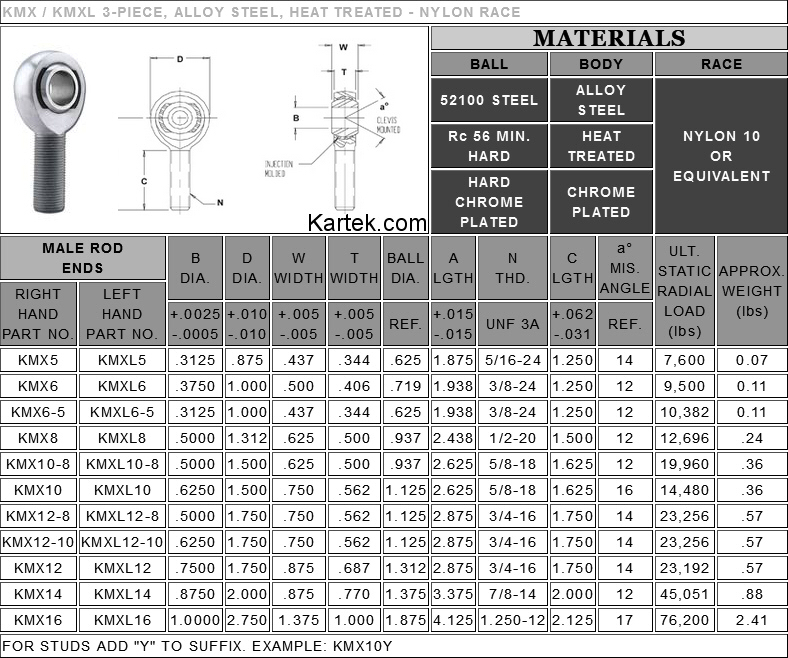

FK Bearing's 3 piece loader slot design KMX series heim joints. Hard chrome plated 52100 steel Rc 56 MIN ball. Heat treated alloy steel chrome plated body. Nylon 10 or equivalent liner.

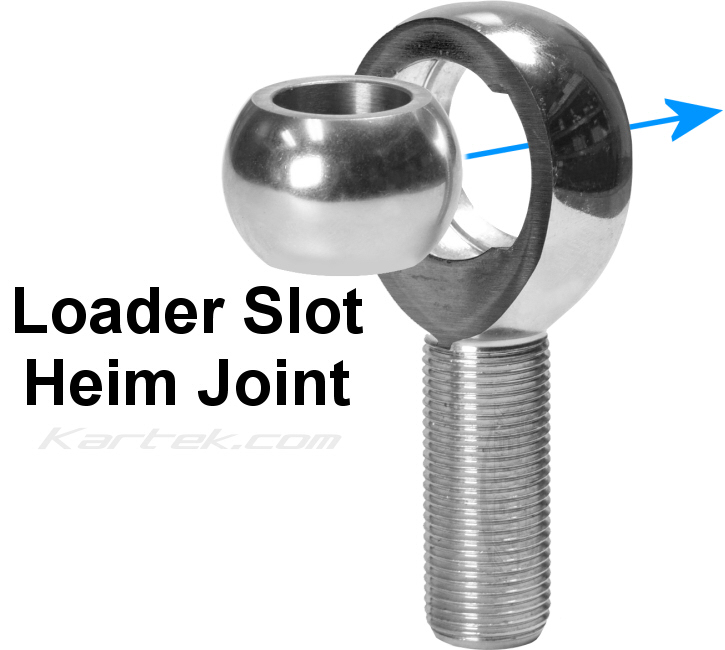

Instead of a retaining ring holding the ball in place, a loading slot is machined into the outer body so that the inner ball may be inserted or removed by turning the ball sideways.
This allows you to replace the Nylon liner or the ball, however when you remove the ball, you will destroy the Nylon liner and you will have to replace that as well.
Instead of a retaining ring holding the ball in place, a loading slot is machined into the outer body so that the inner ball may be inserted or removed by turning the ball sideways.
This allows you to replace the Nylon liner or the ball, however when you remove the ball, you will destroy the Nylon liner and you will have to replace that as well.
